Maya Paint Effects - Grass

Stefan, who is my good friend and long term partner, not partner like lovers, but like New York city cop type partner, solving mystery's and busting crime, was asking about using the maya paint effects. We wanted to know how to randomly scatter grass on a mesh, rather then painting it individually with brush strokes. So here we go, weee!

1: Assuming you have a mesh setup and ready to go, make sure you are in 'rendering' sets or hit 'F6'. Then goto 'Paint Effects' in the menu bar, and with your mesh selected hit 'Make Paintable'.

This will allow you to paint on your mesh now with paint effects, constraining your brush to that mesh so you don't go randomly all over the place like some kind of clown.

2: Select 'Get brush' in the 'Paint Effects' menu, this will allow you to choose from many different types of brushes, i suggest the brick one because it looks like err... lets go with the grass, found under grasses.

3: Once you have selected your brush, select your mesh. In the paint effects menu go to 'Auto Paint' -> 'Paint Random' and hit the option box. This will pop up an option box like this:

The main options you will need to look at are 'Spans U:' and 'Spans V'. This is how many strokes you along U and V. The more you have the more grass you will have. I hit it up to 100 and it crashed Maya. 30 seems to work well, for a nice lush grass.

4: Hit 'Apply'. Maya will think for a bit, then your grass will be applied. You may find your grass coming out looking like this:

The grass is just to small to notice at the moment. To fix this, we just need to up the 'Global Scale' in the 'Attributes editor'. You should just be able to go straight to your attributes editor now and change the global scale, should be under 'GrassClump100' (will be the tap next to 'strokeShape'. The number will depend on how many U and V spans you set, as it creates a random brush across your mesh to these spans. If you dont have any grass selected you can first open up your outliner and select 'Stroke 1', then open your Attributes editor, select 'GrassClump100' and find 'Global Scale'

Now you have some nice looking grass, randomly scattered across your mesh. saves time, and money, and time.

Also note, that where you change your 'Global Scale' options in your Attributes Editor, there are many other options you can play with to make your paint effects look the way you want them. For more info on this, check out the Maya help files, or Google search.

Hot Tup: I got none, eat it.


ramen update!

A ramen update. Started making a few more tweaks and adding details to my ramen bar. Added some pipes and vent, slowly adding more detail to the mesh, it seems very weighted to the right hand side at the moment, i think with proper textures on the hanging signs will bring the viewpoint back to the middle. Im still keeping the camera angle, i dare not change it!

Hot Tup!
A was having a couple issues in maya 2009: Gradient background not saving, and also reload texture hotkey stopped working. so i found a fix for both online, from forums etc. Here are the fixes, very simple stuff.

Gradient Background not saving.

1. Find My Documents\maya\2009\prefs\
2. Open userPrefs.mel
3. Search (ctrl + f) "-iv "displayDivisionLines" 1"
4. Create another line under this one
5. add the line "-iv "displayGradient" 1"

... and you are done.

Reload Texture.

Instead of having to take ages going into the texture node and hitting reload texutre, this handy mel script (that i didnt write) will allow you to hotkey it, much quicker and easier. Hot keys win again.

In your hotkey editor create a new hotkey, and add the follow script:

//global proc CRupdateTexAll(){
waitCursor -state on;
string $fileTextures[] = `ls -tex`;
int $count=0;
source AEfileTemplate.mel;
for ($node in $fileTextures)
if (`attributeQuery -node $node -ex fileTextureName`)
AEfileTextureReloadCmd ($node+".fileTextureName");
$count = ++$count;
waitCursor -state off;
print ("Reloaded "+$count+" textures"+"\n");

done! thats it... amazing stuff as always. Coming soon, i will walk through nCloth, so easy i dont really need to do it, but i will.


Quick 3D scene for paint over...

EDIT!: This has been moved, it was annoying me on the front page, being so big and ugly...

This ones for Myke, but its good for concept artists who are du- err i mean don't know how to use Maya and don't care about it, its a simple way to setup a shot quickly to paint over.

This is what i will show you:
- Setup scene
- Setup camera
- Setup lighting
- Setup Render

So im going to assume you know how to move around the viewpoint in maya. So we want to setup a realy quick and simple shot that we can then paint over in photoshop, basically to get the perspective right and some nice shadows to work with as well.

Create a plane for the ground.

In the top right corner drop down, make sure you have 'Polygons' selected. Then in the shelf (that's called the shelf btw... not that one stefan) Click 'Polygons' again.

Here you have all the mesh you will need. Create a plane for the ground. Its the one that looks like... a plane.

So to simply move and distort this plane into a shape you may want, on the Left is Move, Scale and rotate (you can figure out how to use those i hope).

If you want to see top down or side views, simply press 'Spacebar' and it will change to a 4 view orthographic view, as well as the perspective in the top right hand corner. With the mouse in any of the viewports you can make them full screen, and back again with space.

Next step is to create a box and put it where you want, using move, and scale it to the size you want. I made this quickly by adding a few boxes and movie, rotating and scaling them into place.

Setup a camera

In the top menu go to

Create - Cameras - Camera

select that, and a Camera will be placed in your scene. It may be really small, you can scale this up just like you would an object (doing this doesn't effect anything to do with the camera, just what it looks like in the viewport)

Now like the boxes you can move it around and put it where you want it. To see what the camera sees, simply go to your 4 view mode (pressing space if your not already in it) and in one of the windows (any, i always use bottom Right for some reason) go to

Panels - Perspective - Camera

(mines called pers1 one because don't worry about it alright). Now you should view through that camera. You can affect that camera like you would the normal viewport, move and pan etc, so setup ur composition. Reason i create a camera is so i can still move my viewport around and not worry about messing up my composition.

You can easily edit the camera FOV buy going:

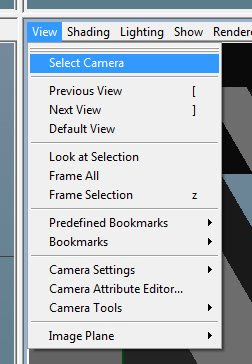

View - Select Camera' then press 'ctrl + A'

This will bring up the 'attribute editor' for that camera. (what ever you select its attributes will come up in this screen, in this case the camera) See Focal Length and Angle of View, you can change these by moving the slider and you will see the camera change, i didn't change mine because I'm cool.

Thats it for setting up the shot.

Render Setup

Now for some nice shadows and a quick render. Maya has a nice quick sun sky setup which is perfect for paint over stuff.

Hit the 'Render Settings' button.

(NOW! Coz maya is AWESOME (NAHHT) you may need to turn mental ray on. To do this,in the top menu of maya goto

'Windows -> Settings and Preferences -> Plug-in Manager'

Look for 'mayatomr' and check 'Load' and 'Auto Load') You don't need to restart or anything after doing this.

Back in the Render settings In the drop down 'Render Using' Menu make sure 'mental ray' is selected.

Here you can change the image size your going to render out. I have mine as 640x640, again because I'm cool. (This is the resolution your render will come out as)

To see what this will look like in your viewport, and give you a better idea of what the final shot will look like go to.

'View - Camera Settings - Resolution Gate'.

Back in the Render settings again, goto
- 'Indirect Lighting Tab'. The top options under
- 'Envornment' Click
- 'Create'
next to
- 'Physical Sun and Sky' (mine says delete coz i already created it and cant be bothered deleting it and starting again)

This will popup another screen, but you don't need to worry to much about this since you can change the color hue and everything else in photoshop later.

By pressing 'Create' Maya has setup a sky dome and a light for you. The Light is now in your scene.

What you want to do is change the sun direction (so you can have better looking shadows, by default the light is pointing directly down, like a perfect midday sun). So minimize any windows and in your viewport you should see a directional light. (Ive made mine massive, again like the camera you can scale this up to see it better if its too small)

Now the great thing about setting it up this way is that when you rotate this light it will act like a real sun. (Note: If you render it wont look like this yet because we need to setup a couple more things, this is to give you an idea of the lighting)

Here the Light is pointing directly down, if that's what you want then good on ya.

Here by simply rotating the light i can create more interesting shadows. You can tell the way the light is pointing because the light is made up off 3 arrows which point in the direction the light will be cast.

Final Render

Bring up Render settings again, we will just change some things to make it look nicer.

Indirect Lighting Tab.
- Final Gather, make sure it looks like this (this will make it render slower but look nicer) Including some nice light bounce. Set 'Secondary Diffuse Bounces' to 2. (Secondary Diffuse Bounces will give you nice bounce light, Final Gather is a quick way to fake GI, most the time you cant tell the difference)

- In the 'Quality' Tab, under 'Raytrace/Scaline Quality' you can up the 'Max Sample Level' Which is just your AntiAlasing, you want this on 'Adaptive Sampling' and
'Max Sample Level 2'. Basically, the lower you got he quicker it will render but the shitter it will look, the higher it is, the longer it takes but the better it looks. 2 is a good number.

OR! Just copy what i did below because that's a lot of big words...

Render your secen now! Press this button.. (Make sure you have the viewport selected that you want to render, ie. your camrea)

...and it should hopefully look all good.

To save this, in the 'Render View' goto 'File - Save Image'
save it as a PSD, i find JPGs get compressed badly. PSDs seem to be all good.

Start painting. I cant paint so dont look at me...
